LT-100C Flux Recovery Machine

手推式LT-100C

悬挂式LT-100C

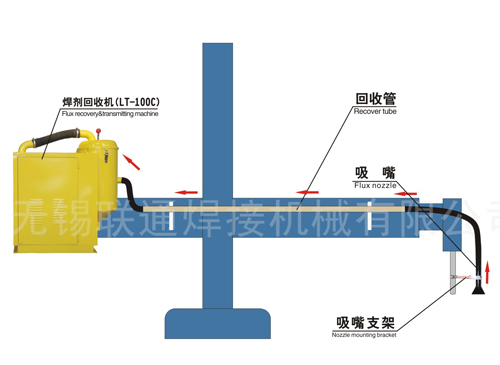

★LT-100C movable flux recovery machine integrates the flux hopper and recycling host into one. It installs the universal wheels which can move around on the ground and recover the flux. It has versatile and easy applications which can be applied in special welding and can be hung on the cross arm of the operating machine to recycle flux. This machine has nice appearance, scientific and reasonable structure, advanced technology and easy application. It is driven by AC motor-controlled negative-pressure air fan which will cause no pollution during the recycling process.

TECHNOLOGICAL INDEX:

MODEL
VOLTAGE
MOTOR POWER
HORIZONTAL RECOVERY DISTANCE
CAPACITY
DIMENSION
LT-100C
380V
3Kw
20m
50-100kg
 950*480*970mm
LT-150C
380V
4Kw
25m
50-100kg
 950*500*970mm
LT-200C
380V
DOMESTIC 5.5Kw
30m
50-100kg
 1050*550*1010mm
LT-250C
380V
IMPORTED 5.5Kw
40m
50-100kg
 1200*600*1250mm
